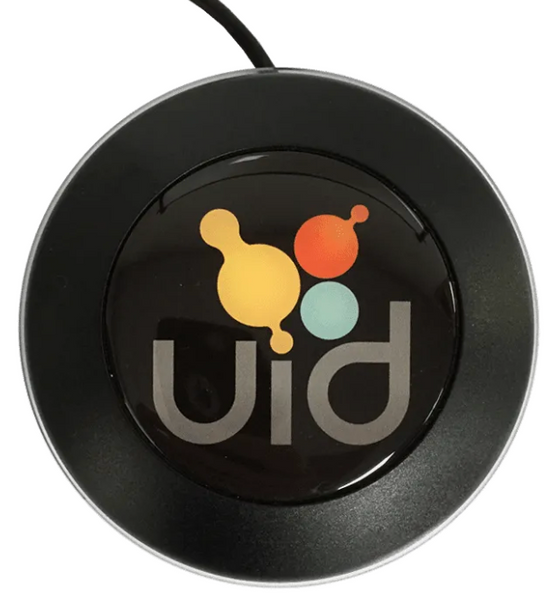

UID Low Frequency Desktop Reader

The UID Low Frequency Desktop Reader (UDT-100L) combines the functionality of a handheld reader in a stationary desktop model. This desktop reader connects directly to a PC via USB or HID interface for simple communication with any software platform. The LF Desktop Reader is compatible with UID transponders, and other transponders (ASK, ISO FDX-B, ISO HDX, and PSK modes) that broadcast information in the 125 kHz and 134.2 kHz frequencies.

The LF Desktop Reader features a white light ring that illuminates when powered and flashes when a microchip is present. This simple and low-cost transponder/microchip reader is ideal for laboratory animal identification, as well as for pet or wildlife identification applications.

Features and Benefits:

• Desktop reader
• Compatible with all UC-Series of UID microchips
• Recommended species: mice, rats
• Recommended Routes: SC (mice, rats), IP (mice)
• Microchip programming: NO
• Reads temperature data (UCT-2112 Temperature Microchip)
• For use with UBS-200 Base Station or UBC-600 Base Console
• Connects to PC via USB cable or HID interface
• HID Keyboard: YES
• Read range: 3-4cm
• Size: 110mm diameter x 30mm height
• White LED light indicator
• Power: POE
• Frequency: 124 kHz, 134.2 kHz
• Reading systems: ASK, ISO FDX-B, ISO KDX, PSK

$975.00
